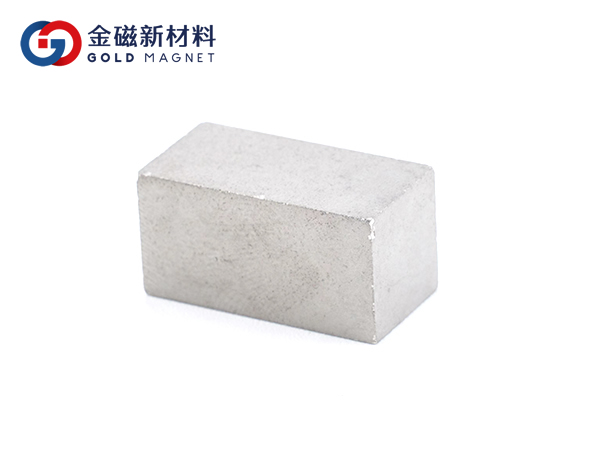

| 钐钴永磁体性能参数表 | |||||
| 牌号 | 剩磁(Br) | 矫顽力(Hcb) | 内禀矫顽力(Hcj)(Koe) | 最大磁能积(BH)max | 建议工作温度(℃) |
| ( KGs) | ( Koe) | (MGoe) | |||
| SmCo5 | |||||
| YX-5 | 4.30-5.00 | ≥3.80 | ≥15 | 4.0-5.0 | ≤250 |
| YX-6 | 5.00-6.00 | ≥4.50 | ≥15 | 5.0-7.0 | ≤300 |
| YX-16 | 7.50-8.50 | ≥7.00 | ≥15 | 14-17 | ≤250 |
| YX-18 | 8.50-9.20 | ≥8.00 | ≥18 | 16-19 | ≤250 |
| YX-20 | 8.80-9.50 | ≥8.30 | ≥18 | 18-21 | ≤250 |
| YX-22 | 9.00-9.80 | ≥8.50 | ≥15 | 21-23 | ≤250 |
| YX-24 | 9.5-10.30 | ≥9.00 | ≥15 | 22-25 | ≤250 |
| Sm2Co17 | |||||
| YX-24A | 9.5-10.30 | 5.0-6.0 | 6.00-8.50 | 22-25 | ≤200 |
| YX-24B | 9.5-10.30 | ≥9.00 | ≥15 | 22-25 | ≤250 |
| YX-24C | 9.5-10.30 | ≥9.00 | ≥25 | 22-25 | ≤300 |
| YX-24D | 9.5-10.30 | ≥9.00 | ≥30 | 22-25 | ≤350 |
| YX-26A | 10.0-10.7 | 5.0-6.0 | 6.00-8.50 | 24-27 | ≤200 |
| YX-26B | 10.0-10.7 | ≥9.00 | ≥15 | 24-27 | ≤250 |
| YX-26C | 10.0-10.7 | ≥9.00 | ≥25 | 24-27 | ≤300 |
| YX-26D | 10.0-10.7 | ≥9.00 | ≥30 | 24-27 | ≤350 |
| YX-28A | 10.3-11.0 | 5.0-6.0 | 6.00-8.50 | 26-29 | ≤200 |
| YX-28B | 10.3-11.0 | ≥9.00 | ≥15 | 26-29 | ≤250 |
| YX-28C | 10.3-11.0 | ≥9.00 | ≥25 | 26-29 | ≤300 |
| YX-28D | 10.3-11.0 | ≥9.00 | ≥30 | 26-29 | ≤350 |
| YX-30A | 10.8-11.3 | 5.0-6.0 | 6.00-8.50 | 28-31 | ≤200 |
| YX-30B | 10.8-11.3 | ≥9.00 | ≥15 | 28-31 | ≤250 |
| YX-30C | 10.8-11.3 | ≥9.00 | ≥25 | 28-31 | ≤300 |
| YX-30D | 10.8-11.3 | ≥9.00 | ≥30 | 28-31 | ≤350 |
| 粘结钐钴 | |||||
| ZYX-5 | 4.30-5.00 | ≥3.80 | 8.0-12.0 | 4.0-5.0 | ≤180 |
| ZYX-8 | 5.00-6.50 | ≥4.50 | 8.0-12.0 | 6.0-9.0 | ≤180 |
| 注塑钐钴 | |||||
| ZSYX | ≤6.50 | ≤6.0 | 8.0-12.0 | ≤9.0 | ≤180 |
| 说明:除以上性能外还可以按客人要求性能生产。还有低温度系数和最高工作温度可达550度的钐钴磁体。 | |||||
